Experienced supplier of carbonated bottling equipment,small carbonated drink filling machine,carbonated drink production line

The series of products are the aseptic filling equipment for the pure beer, designed and developed on the basis of introducing the technology from Germany and combining the features in the production industry of pure beer in China. This machine is of good reliability of mechanical operation, perfect functions in rinsing, filling, capping, disinfecting and sterilizing, realizing filling the sterile beer into the sterile container in a sterile environment

1. This equipment is automatic washing filling capping three in one machine. Its of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

The carbonated bottling equipment is a vital component of the carbonated drink production line, designed to handle various stages of the bottling process for carbonated beverages. This equipment plays a crucial role in ensuring that each container is filled, sealed, and packaged with precision and efficiency.

Performance-wise, the carbonated bottling equipment integrates several key machines, including the small carbonated drink filling machine. This specific machine is designed for filling smaller quantities of carbonated drinks, making it ideal for craft beverages or smaller production runs. The small carbonated drink filling machine excels in maintaining carbonation levels during the filling process, ensuring that the drink retains its effervescence and flavor.

The carbonated bottling equipment also includes other essential components such as capping machines and labeling systems, which work in conjunction with the small carbonated drink filling machine to provide a seamless and efficient bottling process. The equipment is engineered to operate at high speeds while maintaining high standards of quality control, which is essential for meeting the demands of the beverage industry.

In the carbonated drink production line, the carbonated bottling equipment ensures that each step of the process—from filling to sealing—is handled with precision. The equipment is designed to handle various container types and sizes, providing flexibility to accommodate different product requirements and market needs.

The integration of the small carbonated drink filling machine within the carbonated bottling equipment allows for a streamlined production process. This machine’s ability to handle small batch sizes efficiently complements the overall bottling line, ensuring that even smaller production runs can be executed with the same level of accuracy and quality as larger ones.

Overall, the carbonated bottling equipment is crucial for maintaining the quality and consistency of carbonated beverages throughout the carbonated drink production line. Its ability to integrate various machines, including the small carbonated drink filling machine, into a cohesive and efficient system ensures that every container is filled, sealed, and packaged to meet industry standards and consumer expectations.

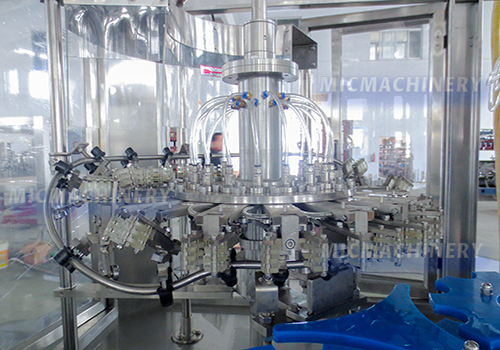

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

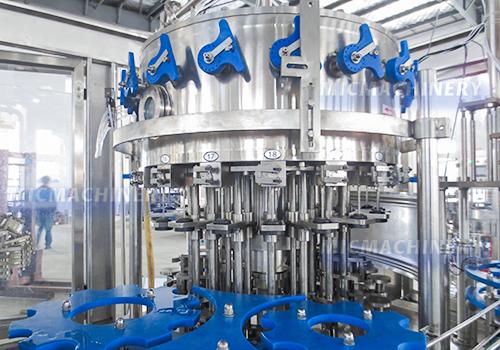

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

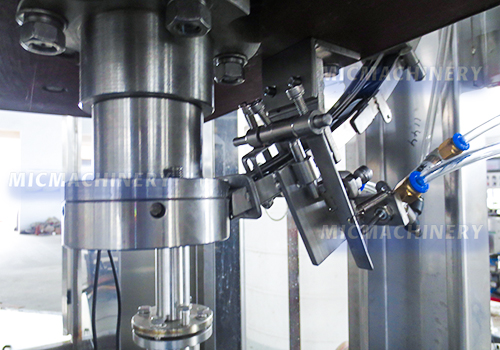

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Model No.	12-12-1	18-18-1	18-18-6	24-24-6	32-32-8
Rinsing Heads	12	18	18	24	32
Filling Heads	12	18	18	24	32
Capping Heads	1	1	6	6	8
Filling Speed	500-1000BPH	800-1500BPH	2000-4000BPH	4000-5000BPH	4800-7500BPH

1	Name	Brand
2	Push Button	Schneider France
3	Electromagnetic Contactor	Schneider France
4	Relays	Omron Japan
5	Frequency Converter	Siemens
6	Air Cylinder	AirTAC Taiwan
7	Electromagnetic Valve	AirTAC Taiwan
8	PLC Control System	Siemens
9	Touch Screen	Siemens
10	Photoelectric Switch	Autonics
11	Proximity Switch	Autonics
12	Reducer	Zhejiang Duoli China
13	Sealing Motor	Zhejiang Duoli China
14	Barometer	AirTAC Taiwan
15	Bearing	Harbin China

MIC 18-18-1 Carbonated Drink Bottling Equipment (800-1500BPH, especially suitable for drinks plant)
