MIC Linear Cans Filling Machine (1000-1500CPH)

MIC Linear Cans Filling Machine (1000-1500CPH)
MIC Linear Cans Filling Machine (1000-1500CPH)
MIC Linear Cans Filling Machine (1000-1500CPH)
Video
  • INTRODUCTION
  • PARAMETERS
  • CLIENT VIEWS

Automatic mobile portable small beer canning machine is very suitable for small brewery.  It has Co2 purge function, counter pressure filling system, lid loading system, lid seaming system, cover cleaning function.

Business items
1)Price is on the basis of FOB Shanghai
2)Payment term: 30% T/T deposit advanced, 70% T/T balance before shipment.
3)Delivery time: 45-50 working days after receiving samples and deposit
4)After-sale service: We provide one year guarantee, provide timely and effective services.
After the warranty period, we provide users with lifetime technical service and after-sales service.
5)PRICE VALID TIME: 60DAYS

The cans filling machine is an essential piece of equipment in the beverage and food industries, designed to streamline the process of filling various types of cans with liquid products. This machine ensures efficiency, precision, and consistency in high-volume production environments.


A notable variant of the cans filling machine is the aluminum can filling machine. This specialized machine is designed specifically for handling aluminum cans, which are widely used for beverages like sodas, beers, and juices. The aluminum can filling machine operates with precision to fill cans accurately while maintaining the integrity of the product. It is engineered to handle the lightweight and durable nature of aluminum cans, ensuring that each can is filled to the exact level with minimal waste.


The cans filling machine, including the aluminum can filling machine, is built to handle high-speed operations, making it suitable for large-scale manufacturing environments. It incorporates advanced technology to ensure that each can is filled consistently and quickly. The machine is designed to accommodate different liquid types, from carbonated drinks to non-carbonated beverages, adapting to various production needs.


In summary, the cans filling machine and aluminum can filling machine work together to provide a comprehensive solution for efficient and accurate can filling. These machines enhance the overall productivity of canning lines, ensuring high-quality and consistent results in large-scale production settings.

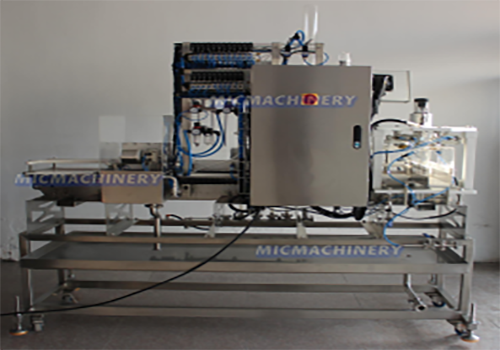

Linear Beer Can Filling Machine

This linear beer can filling machine has four filling heads, when the beer can enter into the machine, automatically filling. Then beer can enter capping station.

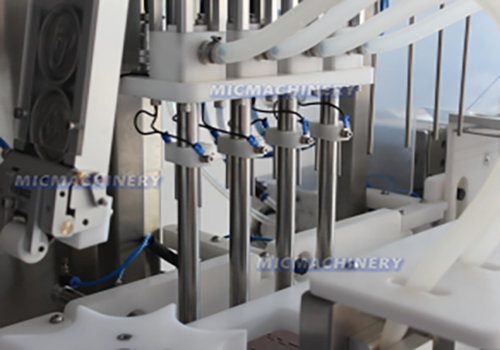

Filling Head

After pressing the button, the filling head enters the inside of the cans and fills the beer into the cans. Filling heads are easy to replace and clean.

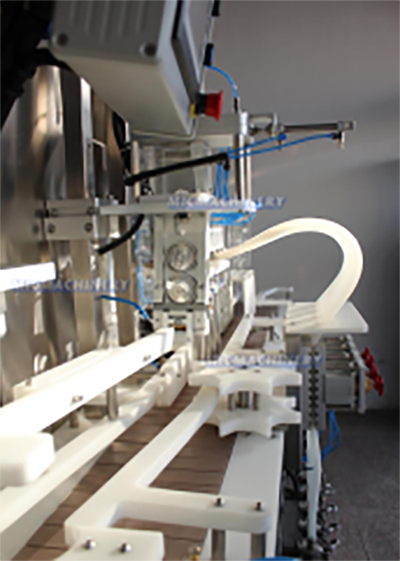

Coveryor Station

The conveyor belt transports the bottles into the filling and capping system. When the machine fails, the conveyor belt will automatically stop working

Equipment Parameter

MIC 4-4-1 Beer Can Rinser Filler Seamer

1

Dimension (L*W*H)

2.00×0.91×1.85M

2

Equipment Weight

400KG

3

Packing Size (L*W*H)

2.20×1.15×2.05M

4

Packing Weight

550KG

5

Production Capacity

1200- 1500pcs/ H(330ml) 396-495L/ H

1000- 1200pcs/ H(500ml) 500-600L/ H

6

Voltage

380V-3 Phases-50Hz (Customized)

7

Power port

3P+ N+G

8

Power consumption

2.0-3.5KW

9

Main Material

SUS304

10

Beer Storage Tank Pressure

0.15-0.2Mpa (22-30PSI) 1.5" Tir-clamp

11

Compressed Air

0.5-0.7Mpa (75.0- 105PSI) OD:Ф10mm

12

Jacking Can Pressure

0.20-0.30Mpa (30-45PSI)

13

CO2 Pressure

0.15-0.2Mpa (22-30PSI) OD:Ф10mm

14

Flip- Rinse Pressure

0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp

15

Exit- Rinse Water Pressure

0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp
