Washing Part
Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

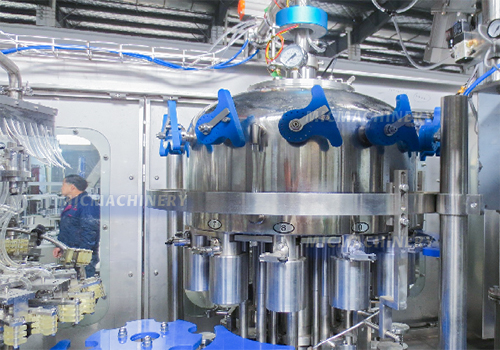

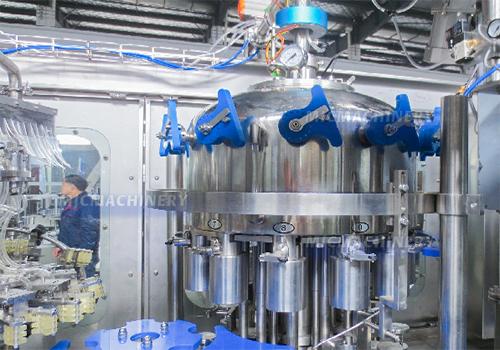

Filling Part
Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Capping Part
Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.
Model No. |
XGF12-12-1 |
XGF18-18-1 |
XGF18-18-6 |
XGF24-24-6 |
Rinsing heads |
12 |
18 |
18 |
24 |
Filling heads |
12 |
18 |
18 |
24 |
Capping heads |
1 |
1 |
6 |
6 |
Filling speed |
500-1000BPH |
800-1500BPH |
2000-4000BPH |
4000-5000BPH |
Model No. |
XGF32-24-6 |
XGF32-32-8 |
XGF72-72-8 |
|
Rinsing heads |
32 |
32 |
72 |
|
Filling heads |
24 |
32 |
72 |
|
Capping heads |
6 |
8 |
8 |
|
Filling speed |
6000-8000BPH |
4800-7500BPH |
10000-25000BPH |
|
|
Name |
Brand |
1 |
Push Button |
Schneider France |
2 |
Electromagnetic Contactor |
Schneider France |
3 |
Relays |
Omron Japan |
4 |
Frequency Converter |
Siemens |
5 |
Air Cylinder |
AirTAC Taiwan |
6 |
Electromagnetic Valve |
AirTAC Taiwan |
7 |
PLC Control System |
Siemens |
8 |
Touch Screen |
Siemens |
9 |
Photoelectric Switch |
Autonics |
10 |
Proximity Switch |
Autonics |
11 |
Reducer |
Zhejiang Duoli China |
12 |
Sealing Motor |
Zhejiang Duoli China |
13 |
Barometer |
AirTAC Taiwan |
14 |
Bearing |
Harbin China |
