MIC 32-32-8 Brewery Bottle Filler (8000-10000BPH)

MIC 32-32-8 Brewery Bottle Filler (8000-10000BPH)
MIC 32-32-8 Brewery Bottle Filler (8000-10000BPH)
MIC 32-32-8 Brewery Bottle Filler (8000-10000BPH)
MIC 32-32-8 Brewery Bottle Filler (8000-10000BPH)
Video
  • INTRODUCTION
  • TECHNICAL PARAMETER
  • SETUP LIST
  • CUSTOMER REVIEWS

The machine is rotary design, Used for the production of various kinds of beer

This machine use pressure filling, liquid surface positioning. The machine for automatic control.

Through the touch screen to operate the machine.

It is applied to glass bottle and multifunctional which can be used for washing, filling and capping.

The whole process is automatic. It is made of high quality SUS304 stainless steel.

Main components are processed precisely by CNC machine tool.

The machine adopts advanced photo electricity to detect running status.

No bottle no filling, excellent automatically. Because of applying touch screen for operation. It is possible to realize

Main machine conversation where as the status of device running is clear at a glance. Beer filling machine Primary features:

1) Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.

2) Only exchanging "star wheel", "feeding screw" and "arc guide plate" is needed while exchanging model of bottle.

3) The all parts directly contacted with material are all adopted with food stage stainless steel without dead angle, So they can be cleaned easily.

4) Adopting advanced valve to control the inlet flow rate of liquid. It can keep the slight turbulence of liquid level in the solution barrel and ensure the accuracy in filling.

5) Closing feeding valve automatically while no bottle on machine avoid the loss of aqueous feet. Filling automatically is with a high speed and the control of liquid level is accurate.

6) The magnetic-constant-torque device is adopted in capping head to ensure the high capping quality without damage.

7) Adopting efficient cap settling system which carried perfect cap feeding and protection device.

8) It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel. And to adjust the input height is not necessary for exchanging model of bottle.

9) carried the perfect protection system to overload; it can be used to protect facilities and operators efficiently.

10) Because of applying touch screen for operation, it is possible to realize man-machine conversation whereas the status of device running is clear at a glance.

11) The primary electric components such as touch screen\PLC\transducer etc. are all adopted with well known import products.

When it comes to high-volume beer production, an automatic beer bottle filling machine can make a world of difference. These machines are designed to handle large quantities of beer quickly and efficiently, with minimal manual intervention. If you're looking for a bottling solution that can keep up with your demands, an automatic beer bottle filling machine might be just what you need.

One option to consider is an auto beer bottle filling machine that can handle 8000-10000 bottles per hour. With this kind of capacity, you can produce a significant amount of beer in a short period of time, which can be essential for meeting customer demands or keeping up with seasonal variations. These machines are designed to handle a wide range of bottle sizes and shapes, so you can customize your production to meet your needs.

Some automatic beer bottle filling machines can also be equipped with additional features, such as labeling and capping capabilities. This can further streamline your production process, ensuring that your beer is packaged and ready to go as quickly as possible. Plus, with automatic filling, you can reduce the risk of contamination or inconsistencies in your product, leading to a higher-quality end result.

Overall, if you're looking to boost your beer production and streamline your operations, an auto beer bottle filling machine is worth considering. With the ability to handle high volumes quickly and efficiently, you can focus on delivering a quality product to your customers, while your machine takes care of the rest.

The brewery bottle filler is an essential piece of equipment for any brewing operation, particularly for those specializing in craft beer. Designed to handle the unique demands of a brewery, this machine ensures efficient, precise, and hygienic filling of bottles, crucial for maintaining the quality and integrity of the beer.


The brewery bottle filler is engineered to deliver high accuracy and consistency, which are vital for craft beer production. It integrates advanced technology to ensure that each bottle is filled to the correct level without spills or wastage. This precision helps preserve the beer's flavor and carbonation, which are key factors in delivering a high-quality product.


Complementing the brewery bottle filler is the broader brewery bottling equipment, which encompasses a range of machines designed to automate and streamline the bottling process. This equipment includes cappers, labelers, and conveyors, all working together to enhance efficiency and reduce labor costs. The brewery bottling equipment is designed to handle various bottle sizes and types, making it versatile and adaptable to different production needs.


For those focused on the craft beer market, investing in a craft beer bottling machine is essential. This machine is specifically tailored to meet the demands of smaller, artisanal breweries. The craft beer bottling machine combines advanced features with gentle handling to preserve the delicate flavors and quality of craft beers. It also ensures that each bottle is sealed securely to maintain freshness and prevent contamination.


Overall, the brewery bottle filler, along with comprehensive brewery bottling equipment and specialized craft beer bottling machine, provides a complete solution for breweries aiming to achieve high-quality bottling results. These machines work in tandem to improve efficiency, maintain product quality, and support the growth of craft brewing operations.

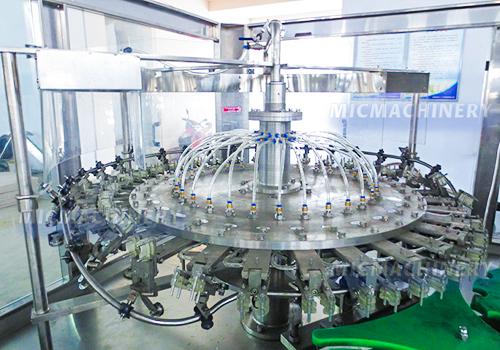

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

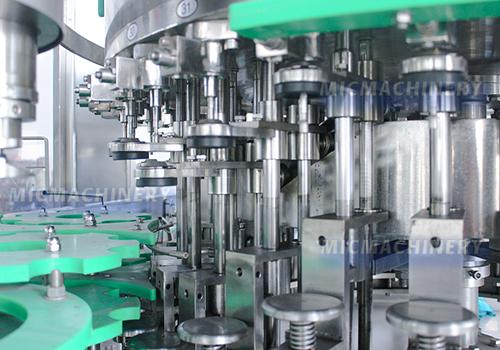

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.


Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

1

Filling Nozzle

32 heads

2

Water Rinse Nozzle

32 heads

3

Capping Head

8 heads

4

Filling Volume

200ML

5

Filling Speed

4800-7200BPH

6

Air Pressure

0.3-0.6Mpa

7

Washing Water Pressure

0.2MPa

8

Washing Water Consume

Less than 2.5T/hour

9

Main Motor Power

3KW

10

Total Power

5.5KW

11

Size

3400mm*2000mm*2300mm (length* width* height)

12

Total Weight

6500KG

13

Voltage

220/380V 50-60Hz (Can be customized)

14

Control

PLC+Touch Screen

15

Material

SUS 304


1

Name

Brand

2

Push Button

Schneider France

3

Electromagnetic Contactor

Schneider France

4

Relays

Omron Japan

5

Frequency Converter

Siemens

6

Air Cylinder

AirTAC Taiwan

7

Electromagnetic Valve

AirTAC Taiwan

8

PLC Control System

Siemens

9

Touch Screen

Siemens

10

Photoelectric Switch

Autonics

11

Proximity Switch

Autonics

12

Reducer

Zhejiang Duoli China

13

Sealing Motor

Zhejiang Duoli China

14

Barometer

AirTAC Taiwan

15

Bearing

Harbin China
