MIC14-12-5 machine is a kind of professional filling machine for juice, mineral water, pure water which applies to PET bottle. It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling. It realize man-machine conversation because of applying touch screen for operation
1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way
2) Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter
3) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
4) Screw capper adopts French advanced technology which cans screw cap promptly when clamping bottle.
5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI.

The beverage filling line is a fully automated system engineered to handle the efficient and precise filling of various types of beverages, including carbonated drinks, juices, water, and even alcoholic beverages. This advanced system integrates different stages of production, from bottle cleaning and rinsing, to filling and capping, ensuring that each bottle is processed with maximum speed and accuracy. The design of the beverage filling line allows it to manage large-scale operations while maintaining high standards of quality and hygiene.


One of the key features of this system is the automatic beverage filling machine, which plays a central role in ensuring accurate and consistent filling levels in each bottle. This machine is equipped with advanced sensors and control systems that monitor the flow of liquids and adjust the filling process in real time. This ensures that the correct amount of beverage is dispensed into each container, minimizing product waste and increasing efficiency. Additionally, the automation reduces the need for manual intervention, resulting in faster production times and lower labor costs.


In terms of performance, the beverage filling equipment is built to handle high-speed operations while maintaining precise control over every step of the filling process. Its flexibility allows manufacturers to switch between different bottle types and sizes, which is particularly important for companies producing a range of beverage products. Moreover, the machine's hygienic design, featuring stainless steel components and easy-to-clean parts, ensures that it meets strict food and beverage industry standards for cleanliness and sanitation.


The beverage filling production line is a scalable solution that can be tailored to meet the needs of growing businesses. It can easily be expanded by adding additional machinery for tasks like labeling, sealing, or secondary packaging. This adaptability makes it a future-proof investment for beverage companies looking to increase their production capabilities while maintaining high product standards. By using an integrated automatic beverage filling machine, businesses can enhance operational efficiency, ensure product quality, and meet the increasing demand for bottled beverages in the market.


Washing Part

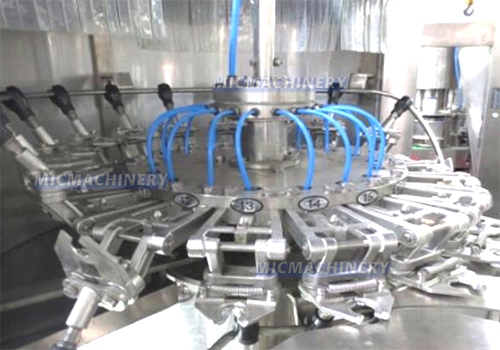

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.


Filling Part

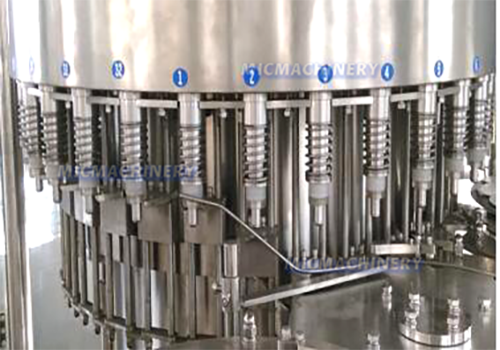

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.


Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Model

8-8-3

14-12-5

18-18-6

Application

Juice, tea, pure water, mineral water, energy drinks, coffee and etc.

Filling Way

Gravity Filling

Packing Type

PET/Plastic bottle

Production Capacity

2000-2500BPH

3000-5000BPH

5000-8000BPH

Powder

1.2KW

1.5KW

2.2KW

Weight

1500KG

2000KG

4000KG

Overall Dimensions(mm)

2260*1600*2600

2250*1650*2650

2850*2150*2700


No.

Name of parts

Brand

1

PLC

Mitsubishi Japan

2

Touch screen

WEINVIEW

3

Inverter

Siemens Germany

4

Low-voltage apparatus

Schneider France

5

Pneumatic components

AirTAC Taiwan

6

Bearing

China

7

Optical sensor

Omron Japan
