Video
  • Introduction
  • Parameters
  • Setup List
  • Client Views

The series of products are the aseptic filling equipment for the pure beer, designed and developed on the basis of introducing the technology from Germany and combining the features in the production industry of pure beer in China. This machine is of good reliability of mechanical operation, perfect functions in rinsing, filling, capping, disinfecting and sterilizing, realizing filling the sterile beer into the sterile container in a sterile environment

1. This equipment is automatic washing filling capping three in one machine. Its of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

An automatic soda bottle filling machine is a specialized equipment used for filling carbonated beverages, such as soda, sparkling water, and energy drinks, into bottles automatically. The machine is designed to perform the entire filling process, including bottle positioning, filling, and capping, without any manual intervention. This leads to high-speed, efficient, and accurate production of soda bottles while maintaining the quality and consistency of the product. The automatic soda bottle filling machine is equipped with advanced features such as electronic sensors, programmable logic controllers, and human-machine interfaces that enable it to adjust to different bottle sizes and fill levels. The automatic soda bottle filling machine has become a necessary investment for beverage companies seeking to increase their production capacity and meet consumer needs.
MIC 18-18-1 Automatic Soda Bottle Filling Machine: Efficient and Precise Filling Solution for Beverage Plants

At Micmachinery, we are proud to offer the MIC 18-18-1 Automatic Soda Bottle Filling Machine, a high-performance solution designed specifically for medium-sized beverage production lines. With a filling capacity of 800-1500BPH, this machine is perfectly suited for drink plants producing carbonated beverages such as sodas, sparkling water, and other fizzy drinks. The soda filling machine ensures fast, precise, and efficient filling while maintaining the integrity of carbonation, making it an essential part of any modern beverage production line.

Precision and Speed for Optimal Filling
The soda bottle filling machine is engineered to provide an accurate and consistent filling process. Its advanced design ensures that each bottle is filled to the correct level, preserving the carbonation of the beverage. The carbonated filling machine is equipped with technology that prevents overfilling or underfilling, ensuring that each product meets high-quality standards. With a filling speed of 800-1500BPH, this machine is designed to maximize productivity without compromising on precision, making it ideal for drink plants with moderate production needs.

Adaptability Across Different Bottle Sizes
The soda filling machine is highly versatile, capable of filling a variety of bottle sizes. Whether you are using PET or glass bottles, this machine offers flexibility, allowing you to easily adjust for different formats. The soda bottle filling machine is designed to adapt to changing production requirements, enabling you to efficiently manage a diverse product range. This feature is especially beneficial for beverage plants that need to switch between multiple product formats or bottle types in a single production run.

Durability and Low Maintenance

Built to Last
Constructed with high-quality, durable materials, the MIC 18-18-1 Automatic Soda Bottle Filling Machine is designed to withstand the rigors of continuous operation. The robust design ensures long-lasting, reliable performance, even under high-volume production conditions. The carbonated filling machine is built to minimize wear and tear, allowing for consistent operation and reducing the need for frequent repairs or part replacements. This machine ensures that your production line remains efficient and reliable over time, helping to maintain consistent output and reduce downtime.

Easy to Operate and Maintain
The soda filling machine is equipped with user-friendly controls, making it easy for operators to set up and adjust the machine for different production needs. The intuitive design also ensures that maintenance tasks are quick and straightforward. The soda bottle filling machine requires minimal effort for cleaning and routine maintenance, ensuring your production line remains operational with minimal downtime. Additionally, the machine’s energy-efficient design helps reduce operational costs, making it a smart choice for businesses looking to optimize their production processes.

Why Choose Micmachinery?
At Micmachinery, we specialize in providing high-quality, reliable filling solutions for the beverage industry. The MIC 18-18-1 Automatic Soda Bottle Filling Machine exemplifies our commitment to offering top-of-the-line equipment that combines precision, efficiency, and durability. With its high-speed capabilities, versatility, and low-maintenance design, this carbonated filling machine is the perfect choice for drink plants looking to streamline their production processes.

If you're looking for a reliable, efficient soda filling machine that can handle moderate production volumes, look no further than Micmachinery. Contact us today to learn more about how our soda bottle filling machine can optimize your production line and meet your business needs.


Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.


Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

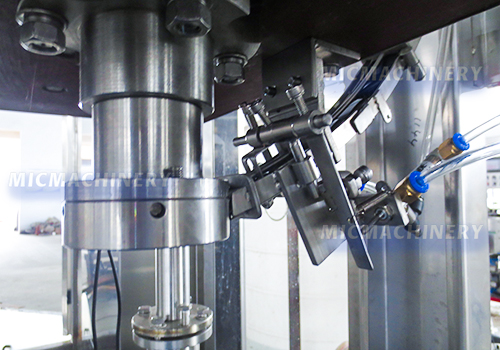

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Model No.

12-12-1

18-18-1

18-18-6

24-24-6

32-32-8

Rinsing Heads

12

18

18

24

32

Filling Heads

12

18

18

24

32

Capping Heads

1

1

6

6

8

Filling Speed

500-1000BPH

800-1500BPH

2000-4000BPH

4000-5000BPH

4800-7500BPH



1

Name

Brand

2

Push Button

Schneider France

3

Electromagnetic Contactor

Schneider France

4

Relays

Omron Japan

5

Frequency Converter

Siemens

6

Air Cylinder

AirTAC Taiwan

7

Electromagnetic Valve

AirTAC Taiwan

8

PLC Control System

Siemens

9

Touch Screen

Siemens

10

Photoelectric Switch

Autonics

11

Proximity Switch

Autonics

12

Reducer

Zhejiang Duoli China

13

Sealing Motor

Zhejiang Duoli China

14

Barometer

AirTAC Taiwan

15

Bearing

Harbin China
