MIC 18-18-1 Carbonated Beverage Filling Machine(Speed 800-1500BPH)

MIC 18-18-1 Carbonated Beverage Filling Machine(Speed 800-1500BPH)
MIC 18-18-1 Carbonated Beverage Filling Machine(Speed 800-1500BPH)
MIC 18-18-1 Carbonated Beverage Filling Machine(Speed 800-1500BPH)
MIC 18-18-1 Carbonated Beverage Filling Machine(Speed 800-1500BPH)
MIC 18-18-1 Carbonated Beverage Filling Machine(Speed 800-1500BPH)
Video
  • Introduction
  • Parameters
  • Setup List
  • Client Views

The series of products are the Carbonated beverage filling machine, designed and developed on the basis of introducing the technology from Germany and combining the features in the production industry of pure beer in China. This machine is of good reliability of mechanical operation, perfect functions in rinsing, filling, capping, disinfecting and sterilizing, realizing filling the sterile beer into the sterile container in a sterile environment

1. This equipment is automatic washing filling capping three in one machine. Its of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

Carbonated beverage filling machines are equipped with advanced features that enable them to handle the unique requirements of carbonated drinks. These machines utilize pressurized filling systems that maintain the carbonation levels during the filling process. They incorporate specialized valves and nozzles designed to handle the high pressure and prevent excessive foaming or spillage.
The filling process of a carbonated beverage filling machine follows a precise sequence of operations. First, the bottles or cans are thoroughly cleaned and sanitized to ensure product safety. Next, the carbonated beverage is precisely dispensed into the containers, with meticulous control over the filling level to maintain consistent carbonation across each unit. Finally, the containers are securely sealed to preserve the carbonation and prevent any loss of pressure.
Benefits and Advantages:
MIC 18-18-1 Carbonated Beverage Filling Machine (800-1500 BPH)

Micmachinery is proud to present the MIC 18-18-1 Carbonated Beverage Filling Machine, designed specifically for small to medium-scale beverage production. With a speed range of 800 to 1500 bottles per hour, this carbonated beverage filling machine delivers high performance, precision, and reliability, making it an excellent choice for beverage manufacturers seeking efficiency without compromising product quality.

Designed for Versatility and Efficiency
The MIC 18-18-1 Carbonated Beverage Filling Machine is engineered to handle a wide variety of carbonated beverages, from sodas to sparkling water, while maintaining the necessary carbonation levels. This carbonated beverage filler is suitable for different bottle types, making it versatile enough to accommodate various packaging needs, whether in glass or PET bottles.

High-Precision Filling Technology
At the core of this beverage filling machine is its cutting-edge filling technology. It ensures precise filling accuracy with minimal foaming, which is crucial for carbonated beverages. The machine is designed to maintain the carbonation integrity of your product, preserving its quality and flavor while reducing waste. Its advanced filling mechanism also minimizes bottle damage, which is a common concern with high-carbon content drinks.

Reliable and Low Maintenance

The MIC 18-18-1 is built to withstand long hours of continuous operation with minimal downtime. Its robust construction and high-quality materials ensure long-lasting durability and ease of maintenance. The carbonated beverage filling machine requires fewer parts to replace over time, which means lower operational costs for you. Moreover, the machine is designed to be easy to clean, ensuring that your production process remains compliant with stringent hygiene standards.

User-Friendly Operation
One of the key features of the MIC 18-18-1 Carbonated Beverage Filling Machine is its intuitive control panel. Operators can easily monitor and adjust the filling settings for different bottle sizes, product types, and production requirements. The user-friendly interface simplifies the training process and helps maximize productivity, allowing your team to focus on producing high-quality beverages.

Hygienic and Safe
In an industry where cleanliness is essential, the MIC 18-18-1 is designed with hygiene in mind. The machine features stainless steel components that are easy to clean and resistant to corrosion. The design of the carbonated beverage filler ensures minimal contact with the beverage, preventing contamination and guaranteeing the safety and quality of the final product.

Efficient, Cost-Effective Production
The MIC 18-18-1 Carbonated Beverage Filling Machine is ideal for beverage companies that require a reliable and cost-effective solution for medium-scale production. With its advanced technology, high precision, and ability to maintain carbonation, this beverage filling machine helps streamline your production process, improving efficiency while reducing waste and energy consumption.

Conclusion
Whether you're looking to expand your production line or upgrade your existing equipment, the MIC 18-18-1 Carbonated Beverage Filling Machine offers exceptional value and reliability. With its high-speed capabilities, precise filling system, and user-friendly design, this carbonated beverage filler is the perfect addition to your production facility.

Contact Micmachinery today to learn more about the MIC 18-18-1 and how it can elevate your beverage production. Let us help you improve efficiency, reduce costs, and maintain the highest standards in product quality!


Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

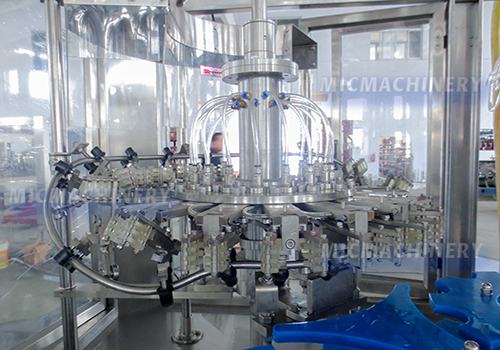

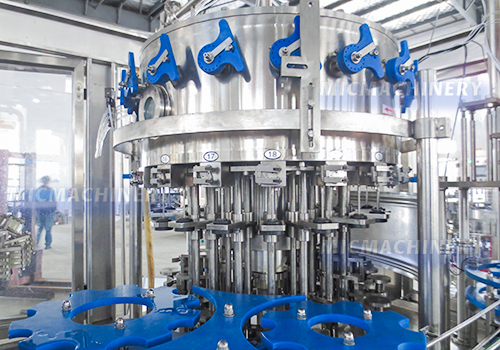

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

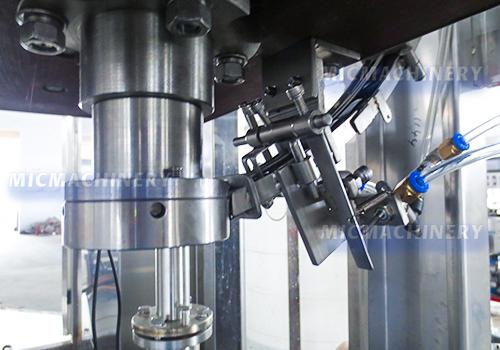

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Model No.

12-12-1

18-18-1

18-18-6

24-24-6

32-32-8

Rinsing Heads

12

18

18

24

32

Filling Heads

12

18

18

24

32

Capping Heads

1

1

6

6

8

Filling Speed

500-1000BPH

800-1500BPH

2000-4000BPH

4000-5000BPH

4800-7500BPH


1

Name

Brand

2

Push Button

Schneider France

3

Electromagnetic Contactor

Schneider France

4

Relays

Omron Japan

5

Frequency Converter

Siemens

6

Air Cylinder

AirTAC Taiwan

7

Electromagnetic Valve

AirTAC Taiwan

8

PLC Control System

Siemens

9

Touch Screen

Siemens

10

Photoelectric Switch

Autonics

11

Proximity Switch

Autonics

12

Reducer

Zhejiang Duoli China

13

Sealing Motor

Zhejiang Duoli China

14

Barometer

AirTAC Taiwan

15

Bearing

Harbin China
