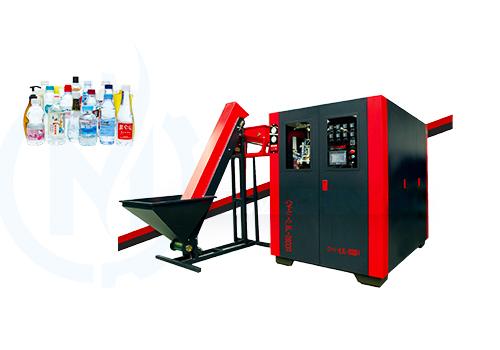

MIC-0.8L-2800 Plastic Bottle Maker

MIC-0.8L-2800 Plastic Bottle Maker: 2800 pcs/h Compact Blow Molder

The MIC-0.8L-2800 is a compact automatic plastic bottle maker built for smaller beverage, condiment, cosmetic, and pharmaceutical plants. It runs 2 cavities at 2800 pcs/h on 150ml round bottles, handles PET preforms up to 0.8L, and fits through a standard factory door at only 1.5 tons. This plastic PET bottle making machine covers the specs, footprint, and line integration buyers actually compare.

Core Technical Parameters

These are the factory-tested numbers for the MIC-0.8L-2800 bottle blowing machine. The 2800 pcs/h figure is rated on a 150ml round bottle with a 28g preform; real output shifts with bottle volume and wall weight.

Key Features & Advantages

This plastic bottle maker is sized for plants that don't need a 7-cavity rotary line but still want stable, repeatable output. The design priorities are operator simplicity, small footprint, and easy maintenance rather than maximum speed.

Man-Machine Interface, Easy to Operate

The whole machine runs off a touchscreen HMI. An operator with basic training sets oven temperature, blow pressure, and stretch delay on one screen. The finished-bottle rate stays high because the heating and blowing steps are interlocked — a cold preform won't reach the mold.

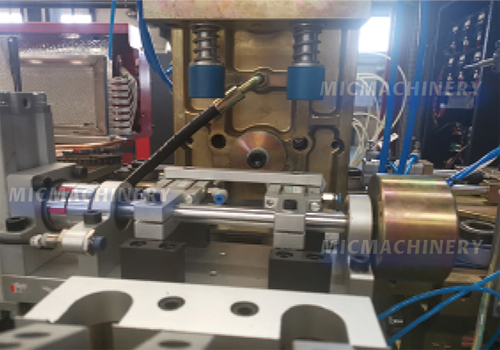

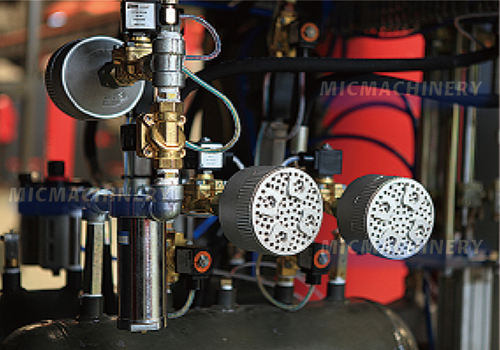

Modular Assembly for Quick Maintenance

Heating box, mold clamping, and blow valve group are bolted modules rather than a welded frame. A lamp change or valve repair takes hours, not days. Spare parts are stocked as kits, so the machine doesn't wait on a single custom component.

Small Footprint, Low Power Draw

Main machine footprint is 2100 × 1450 mm — roughly 3 square meters on the floor. Total power draw is 32 kW, which fits a standard 63A three-phase supply without a panel upgrade. That's the reason this plastic PET bottle making machine suits smaller plants and pilot lines that can't dedicate a large utility budget.

Wide Neck Range: 18–38 mm

The 18–38mm preform neck range is broader than most entry-level 2-cavity units. It covers 28mm water necks, 38mm wide-mouth condiment jars, and smaller cosmetic vials without changing the feeder.

Application Scenarios

The bottle blowing machine handles bottles up to 0.8L across five packaging categories. Output sits in the 2000–3000 pcs/h band, which pairs naturally with a small filler rather than a high-speed beverage line.

Mineral Water and Pure Water

330ml to 550ml round water bottles blow cleanly on the 2-cavity head. A 2800 pcs/h output feeds a 1500–2000 BPH filler with a small accumulator, which is a typical small-bottled-water setup.

Beverages and Juices

Still juice, iced tea, and sports drinks in 300–500ml round or slightly contoured bottles fit within the 85mm max diameter and 265mm max height. Hot-fill juice needs heat-resistant preforms — confirm with the factory.

Condiments and Sauces

Wide-mouth soy sauce, vinegar, and salad dressing bottles use the 38mm neck end of the range. The 0.8L cap covers the common 500ml–750ml condiment bottle formats.

Cosmetic and Pharmaceutical Bottles

Smaller PET bottles for skincare toners, hand wash, syrup, and oral liquid products fit the 18–38mm neck range. Food-contact-grade mold surfaces and air filtration are available for pharmaceutical buyers who need documentation.

Full PET Bottle Production Line Integration

The blow molder sits between the preform feeder upstream and the filler downstream. At 2800 pcs/h it belongs on a compact line, not a high-speed rotary filler.

Matching Production Line Equipment

A compact PET line around this plastic bottle maker pairs with smaller downstream machines. Buying them from one supplier keeps commissioning under one team.

· PET bottle filling capping machine — small monoblock rinser/filler/capper for 1000–3000 BPH water or juice lines, matched to this blow molder's output. View filling capping machine →

· Carbonated drink mixing machine — small CO2 mixer for sparkling water or soda pilot runs; note that CSD preforms are heavier, so real output will drop below 2800 pcs/h.

· Round bottle labeling machine — self-adhesive labeler sized for small round PET bottles up to 3000 BPH. View round bottle labeler →

· Case packing machine — semi-automatic or small automatic case packer for low-speed downstream packaging. View case packing machine →

· Palletizer — compact automatic or semi-automatic palletizer for end-of-line case stacking at low speed. View palletizer →

Certifications & Factory Strength

When buyers compare a plastic bottle maker for the first time, the price gap often hides in documentation, not in the machine itself. Ask for the following before order:

· CE certification for the EU market, covering machinery and low-voltage directives.

· ISO 9001 quality management certification for the manufacturing plant.

· Food-contact safety documentation for mold surfaces, conveyor parts, and air filters — relevant for beverage, condiment, and pharmaceutical buyers.

· On-site factory audit — reputable suppliers welcome video calls or in-person visits. Ask to see the machine running your own bottle sample, not a showroom unit.

· Warranty and spare-parts list — standard warranty terms, urgent-parts response time, and a recommended spare kit (heating lamps, seals, valve kits) quoted at order time.

Get the Exact MIC-0.8L-2800 Quote

Send us your bottle drawing (volume, diameter, height, neck finish), target output, and destination port. We'll come back with a fixed price that includes the mold set, the matched air compressor package, and CE documentation — so the quote number is the container number.

Email: sales@micmachinery.com  |  WhatsApp / WeChat: +86-130-8399-1987

Frequently Asked Questions

1. What is the output of the MIC-0.8L-2800 plastic bottle maker?

Theoretical output is 2800 pcs/h, rated on a 150ml round bottle with a 28g preform. Heavier preforms, wider-mouth condiment bottles, and contoured shapes pull real output down. Send your bottle drawing for a realistic estimate.

2. What bottle sizes can this plastic PET bottle making machine handle?

Up to 0.8L volume, 85mm inner diameter, and 265mm height. Preform neck inner diameter range is 18–38mm and preform height up to 130mm. Outside this envelope, the factory quotes custom mold and feeder changes.

3. Is this bottle blowing machine fully automatic?

Yes. The machine runs off a touchscreen HMI with automatic preform loading, heating, stretch-blow, and ejection. It is not a hand-load semi-automatic unit, but it is sized for smaller lines rather than high-output rotary plants.

4. How much floor space does it need?

Main machine is 2100 × 1450 mm and the elevator is 1900 × 1050 mm. Total weight is 1.5 tons, so a standard reinforced factory floor is sufficient.

5. What power supply does it need?

380V, 50/60 Hz, three-phase. Specified power consumption is 32 kW; max heating power is 20 kW. Confirm your site voltage before order — we can quote a transformer if needed.

6. Can it connect to my existing filler?

Yes, through an air conveyor or simple belt between blow molder and filler. At 2800 pcs/h it pairs with small to mid-range fillers, not high-speed rotary monoblocks.

7. Do you supply the whole line?

About MIC Machinery

MIC Machinery is a China-based manufacturer of PET blow molding machines and complete beverage bottling lines, with CE- and ISO 9001-certified units exported to 60+ countries. The MIC-0.8L-2800 is the company's compact 2-cavity platform for small plants and pilot lines producing water, beverage, condiment, cosmetic, and pharmaceutical bottles up to 0.8L at 2800 pcs/h.
