Features：
The beverage bottle filling machine is a kind of professional hot filling machine for orange juice, apple juice and other hot filling beverage which applies to PET bottle.
It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling. It realize man-machine conversation because of applying touch screen for operation
1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way
2) Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter
3) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
4) Screw capper adopts French advanced technology which cans screw cap promptly when clamping bottle.
5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on

Precision is another key advantage of beverage bottle filling machines. These machines are equipped with precise sensors and measurement devices that ensure consistent fill levels in each bottle. Through advanced technology, they can adjust filling parameters such as flow rates, fill volume, and liquid density, guaranteeing the accuracy and uniformity of the filled beverages. This precision enhances product quality, reduces variations, and contributes to a positive consumer experience.

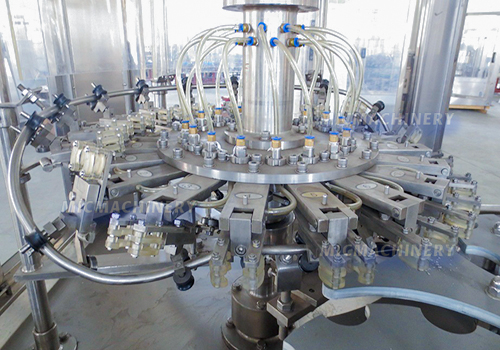

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

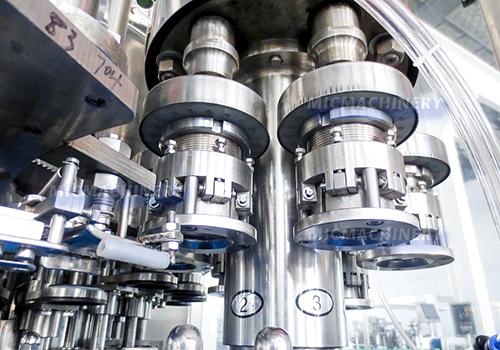

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
text text

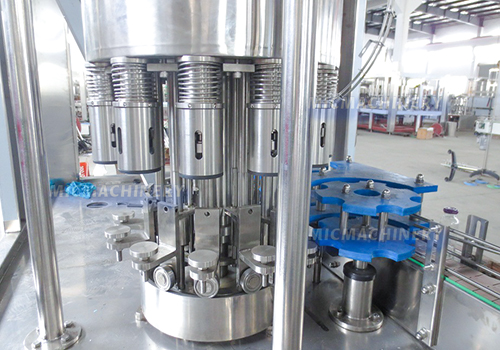

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Model	8-8-3	14-12-5	18-18-6
Application	Juice, tea, pure water, mineral water, energy drinks, coffee and etc.
Filling Way	Gravity Filling
Packing Type	PET/Plastic bottle
Production Capacity	2000-2500BPH	3000-5000BPH	5000-8000BPH
Powder	1.2KW	1.5KW	2.2KW
Weight	1500KG	2000KG	4000KG
Overall Dimensions(mm)	226016002600	225016502650	285021502700

No.	Name of parts	Brand
1	PLC	Mitsubishi Japan
2	Touch screen	WEINVIEW
3	Inverter	Siemens Germany
4	Low-voltage apparatus	Schneider France
5	Pneumatic components	AirTAC Taiwan
6	Bearing	China
7	Optical sensor	Omron Japan
