MIC 18-18-1 Craft Beer Filling Machine(800-1500BPH)

MIC 18-18-1 Craft Beer Filling Machine for Small Breweries

If you run a craft brewery and you need a reliable craft beer filling machine that washes, fills and caps your bottles all in one smooth and continuous process then the MIC 18-18-1 from Micmachinery is exactly what your production line needs right now.

This machine was designed and developed using technology from Germany combined with real production experience gained from years of manufacturing in China. The result is a craft beer filling machine that runs at 800 to 1500 bottles per hour based on 330ml bottles, giving small and growing breweries a genuinely professional output without needing a massive industrial setup to achieve it.

The machine handles pure beer filling in a completely sterile environment from start to finish which means the flavour, freshness and quality of your beer is protected at every single stage of the process.

The glass bottle beer filling machine uses an isobaric low temperature filling system that keeps the carbonation locked inside every bottle during the entire filling process. The filling happens at between 0 and 4 degrees Celsius which keeps the beer cold, fresh and fizzy from the moment the valve opens to the moment the cap goes on.

Filling accuracy sits at plus or minus 1 percent and the liquid level difference stays within 2mm across every single bottle on every single run. If you want consistent professional results every time you press start then this glass bottle beer filling machine gives you exactly that without any compromise.

Advantages of the MIC 18-18-1 Beer Filling Machine

This beer filling machine comes with a long list of real practical advantages that make it stand out from competing machines in the same category.

The compact three in one structure combines washing, filling and capping into a single unit which means you save floor space, reduce the number of machines you need to manage and keep your whole bottling process running in one smooth and well coordinated flow.

The advanced touch screen paired with the Siemens PLC control system makes the whole process easy for anyone on your team to manage in real time without needing specialist technical training. Speed adjustments, pressure monitoring and production tracking all happen from one clear and simple screen.

The water filling machine principles behind the washing section of this machine are applied here with equal care. Each glass bottle is turned upside down during the washing process and a clean stream of rinse water is directed inside the bottle from a spraying nozzle.

After the draining period the bottle is returned to an upright position and moves straight into the filling zone. This step makes sure every bottle is completely clean on the inside before a single drop of beer goes in which protects the hygiene and quality of your finished product.

The filling section uses SUS304 stainless steel for the rotary wheel and SUS316L for the filling valves which is a higher grade material specifically chosen for parts that come into direct contact with your beer. The cam driven elevator system moves bottles up and down to make precise contact with the bottle mouth during filling which keeps everything perfectly aligned and accurate from start to finish.

The automatic beer can filling machine range from Micmachinery uses the same filling precision standards as this model which tells you a great deal about the consistency of quality across the entire product lineup.

The capping section uses electromagnetic capping heads that apply caps cleanly and consistently every single time. The cap distributing chute comes with a photocell switch that automatically stops the capper when there are no caps left inside the chute so you never end up with an uncapped bottle passing through the line by mistake. The capper also has an inlet bottle detection switch so it always knows exactly when a bottle is in the right position before applying a cap.

World Class Components You Can Actually Trust

Every major electrical and mechanical component inside this beer can filling machine comes from a trusted international brand. Push buttons and electromagnetic contactors come from Schneider France. Relays come from Omron Japan. The frequency converter, PLC control system and touch screen all come from Siemens. Air cylinders, electromagnetic valves and barometers come from AirTAC Taiwan.

Photoelectric and proximity switches come from Autonics. The reducer and sealing motor come from Zhejiang Duoli China and bearings come from Harbin China. These are the same brands used in serious industrial production environments all over the world and their presence in this machine is what makes it so reliable day after day, year after year.

This water filling machine grade build quality means the MIC 18-18-1 is not just built for today. It is built to run at the same standard five years from now as it does on the first day you use it. Every machine goes through a thorough production test at the Mic Machine factory before it ships so what arrives at your brewery is fully ready to run from day one.

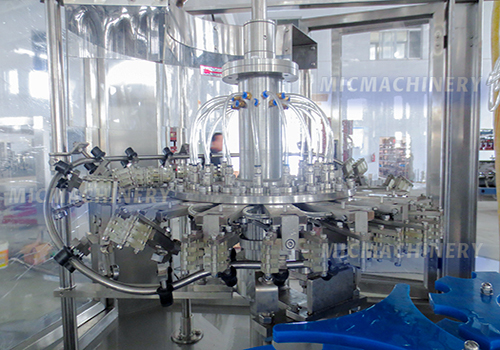

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

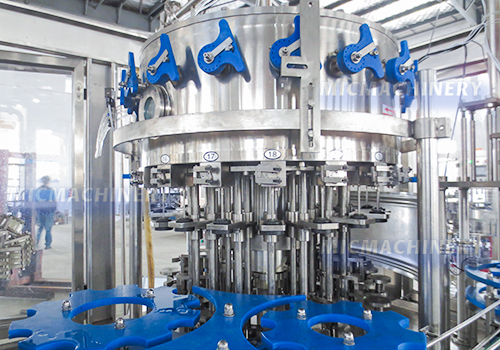

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling),  bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

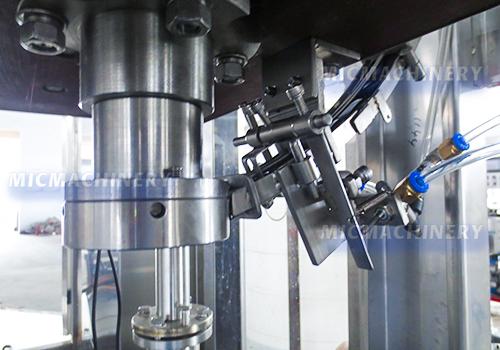

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.
