  • INTRODUCTION
  • TECHNICAL PARAMETER
  • SETUP LIST
  • CUSTOMER REVIEWS
This beer bottling machine mainly used for Beer filling operation, this machine is combined of rinsing, filling capping;
Features of filling machinery:
The whole procedure is full auto, and suitable for glass bottle and aluminum steel-proof caps for filling vodka, wine. The applicable bottle type can be adjusted freely and conveniently. That is why the machine has more capacity and benefit compared other machine with same specification. This machine is adopted advanced programmable PLC, and make the machine running auto, and bottle input conveyor adopts transducer with speed adjustable, and bottle output conveyor adopts speed adjustable motor. Cooperation with transducer of main machine makes the bottle running smoothly and reliably, it is convenient to operate with high auto because of every part of machine is inspected to run by photoelectric detector. The machine is idea-preferred equipment for beverage makers.

Technical features

1, Filling valves adopt high-precision mechanic filling valve with mechanism of no bottle, no vacuumizing.

2, Out-placement mechanic structure. There is no spring in the valve.

3, There are two times of vacuumizing, equipping high pressure foam simulating device.

4, Driving adopts combination of open-type gear and gear. Adopt stepless frequency speed adjustment.

5, This machine equips automatic lubrication device.

6, Equip automatic washing device for broken bottles.

7, The lift of liquid tank, capping heads and control ring is electric to adapt to different height bottles.

8, The product level in the filling tank is controlled by electric probe to keep stable level and reliable filling.

9, Adopt PLC control.

The beer bottling machine represents a remarkable leap forward in automating the beer dispensing process. Crafted with meticulous precision and engineering expertise, this state-of-the-art equipment streamlines the production line, ensuring a seamless flow of beer from the keg or tank directly into the awaiting glasses. With its advanced features and intelligent design, the automatic beer glass filler has become an indispensable tool for breweries and bars seeking to enhance their operational efficiency.

One of the key advantages of the automatic beer glass filling machine is its ability to handle large volumes of beer with remarkable speed and accuracy. Equipped with innovative technologies such as high-speed filling valves and precise measurement systems, this machine can swiftly fill multiple glasses simultaneously, minimizing downtime and maximizing productivity. The automated process ensures consistent pour levels, minimizing variations between servings and guaranteeing an exceptional drinking experience for every customer.

Beyond its efficiency, the automatic beer glass filler places a strong emphasis on maintaining the beer's quality and preserving its taste. By employing advanced sealing mechanisms, the machine minimizes the contact between the beer and external factors, such as oxygen and contaminants. This hermetic environment ensures the beer's freshness remains intact, allowing consumers to enjoy the full flavors and aromas intended by the brewer. Additionally, the machine's self-cleaning functionality ensures optimal hygiene and minimizes the risk of cross-contamination between different brews.

The automatic beer glass filling machine has revolutionized the beer dispensing process, offering breweries and beverage establishments unparalleled efficiency, precision, and quality control. With its ability to handle high volumes, maintain beer freshness, and adapt to various glassware, this advanced equipment is an indispensable asset for modern-day breweries seeking to meet the demands of an ever-evolving market. By investing in an automatic beer glass filler, businesses can streamline their operations, deliver consistent pours, and elevate the overall beer-drinking experience.

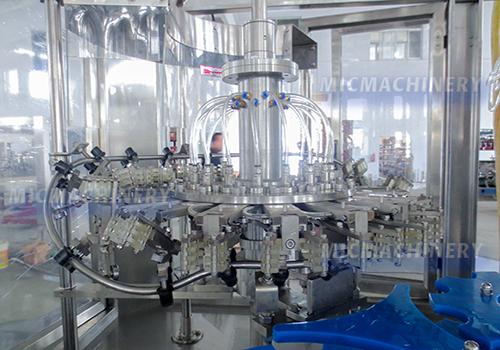

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

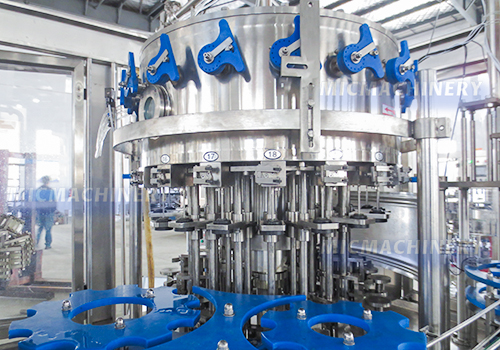

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

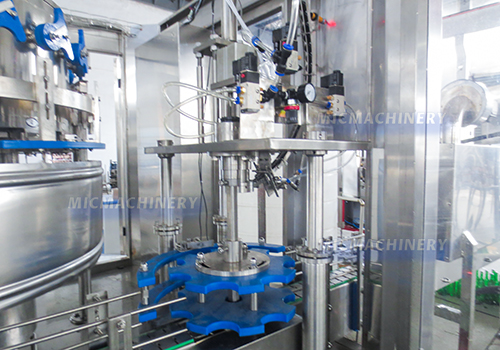

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.


1

Filling Nozzle

18 heads

2

Water Rinse Nozzle

18 heads

3

Capping Head

1 heads

4

Filling Volume

330ML

5

Filling Speed

800-1500BPH

6

Air Pressure

0.6Mpa

7

Air Consume

0.15m3/min

8

Washing Water Pressure

0.2MPa

9

Washing Water Consume

About 1T-2T/hour

10

Main Motor Power

0.75KW

11

Total Power

2.5KW

12

Size

2600mm*1550mm*2200mm (length* width* height)

13

Total Weight

2500KG

14

Voltage

220/380V 50-60Hz (Can be customized)

15

Control

PLC+Touch Screen

16

Material

SUS 304

17

Filling Pressure

0.2~0.5Mpa



1
Name
Brand
2 Push Button
Schneider France
3 Electromagnetic Contactor
Schneider France
4 Relays
Omron Japan
5 Frequency Converter
Siemens
6 Air Cylinder
AirTAC Taiwan
7 Electromagnetic Valve
AirTAC Taiwan
8 PLC Control System
Siemens
9 Touch Screen
Siemens
10 Photoelectric Switch
Autonics
11 Proximity Switch
Autonics
12 Reducer
Zhejiang Duoli China
13 Sealing Motor
Zhejiang Duoli China
14 Barometer
AirTAC Taiwan
15 Bearing
Harbin China
