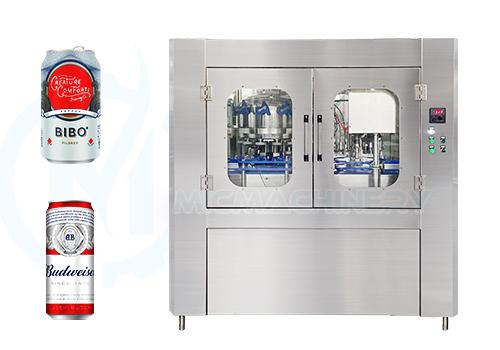

MIC 12-1 Automatic Soda Can Filling Machine adopts isobaric pressure filling system which is applicable for soda beverage, soft drink, soda water, sparkling water and other canned drinks (Cold filling temperature at 0-4 degrees Celsius)
If you also want to use the same machine to fill non-carbonated drinks is available. Through change the counter pressure filling valves to normal pressure filling valves then it will be suitable for filling non-carbonated beverages such as energy drink, fruit juice, cold brew coffee, vitamin water, herbal tea and so on.
Inline can rinser / can washing machine
The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.
“MIC” Isobaric pressuring filling does not create foaming during fill, unless beer is above 40°F. Counter Pressure filling leaves 1.27CM headspace, required by can manufacturers for product expansions and potential warming during distribution. Our machine will not foaming and it can keep low DO in the cans. Counter pressuring filling does not create foaming during filling process. Adopts high precision buffing process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.
“MIC” Counter pressure can filler foaming with hot water or beer jet after filling to eliminate head space and exposure to atmosphere. In order to prevent the oxygen into the can's top position. Jet foaming is the practice used by high-standard breweries. We have tested with dissolved oxygen meter, our TPO is lower than 50PPB.
Aluminum lid seaming system
The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.
Mic 12-1 Parameters
Power |
1.1Kw |
Filling heads |
12piece |
Sealing heads |
1piece |
Production capacity |
1000-2000CPH based on 330ml |
Filling temperature |
0-4 ℃ |
Filling pressure |
Max 5bar/0.5Mpa |
Can diameter range |
Ф40-90MM |
Can height |
92-168MM |
Dimension |
1800*1300*1950mm |
Weight | 1800Kg |
More Model And Speed Click
Model |
MIC 12-1 | MIC 18-1 | MIC 18-6 | MIC 24-6 | MIC 32-8 |
Application | Beer, Carbonated Beverage, Gas Drinks, Cold Coffee, Sparking Water, Cider, Soda Water, Herbal Tea, Non-Carbonated Drinks And So On | ||||
Packing Type |
Aluminum Cans, Metal Cans, Tin Cans, Pet Cans Etc |
||||
Speed | 1000-2000CPH | 1000-2500CPH | 3000-6000CPH | 4000-8000CPH | 6000-10000CPH |
Filling Arrange |
180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L) |
||||
Power | 1.1kw | 1.5kw | 2.5kw | 3.5kw | 4.2kw |
Size | 1.8*1.3*1.95 (M) | 1.9*1.3*1.95(M) | 2.3*1.4*1.9(M) | 2.58*1.7*1.8(M) | 2.8*1.7*1.95(M) |
Weight | 1800KG | 2100KG | 2500KG | 3000KG | 3800(KG) |
1 |
Name |
Brand |
2 |
Push Button |
Schneider France |
3 |
Electromagnetic Contactor |
Schneider France |
4 |
Relays |
Omron Japan |
5 |
Frequency Converter |
Siemens |
6 |
Air Cylinder |
AirTAC Taiwan |
7 |
Electromagnetic Valve |
AirTAC Taiwan |
8 |
PLC Control System |
Siemens |
9 |
Touch Screen |
Siemens |
10 |
Photoelectric Switch |
Autonics |
11 |
Proximity Switch |
Autonics |
12 |
Reducer |
Zhejiang Duoli China |
13 |
Sealing Motor |
Zhejiang Duoli China |
14 |
Barometer |
AirTAC Taiwan |
15 |
Bearing |
Harbin China |
