Automatic plastic bottle filling machine
Automatic plastic bottle filling machine
Automatic plastic bottle filling machine
Video
  • INTRODUCTION
  • PARAMETER
  • Configuration
  • APPLY

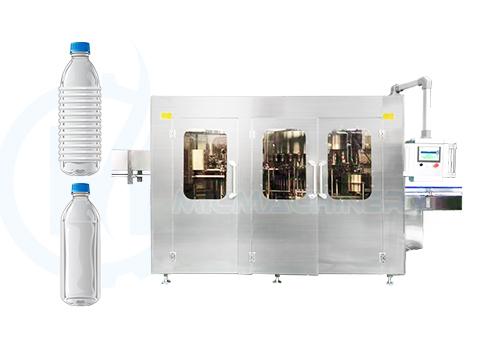

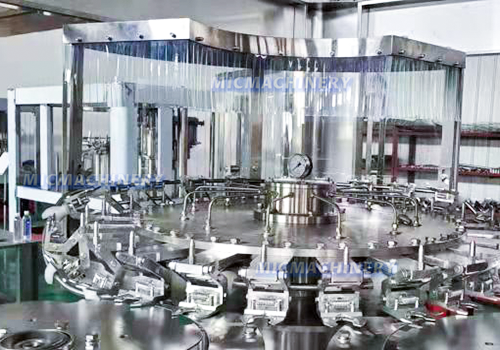

MIC18-18-6 machine is a kind of professional filling machine for juice, tea, soda water, water which applies to PET bottle. It is made of high quality SUS304 stainless steel. The machine adopts advanced photo electricity to detect running status. No bottle no filling.
1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way

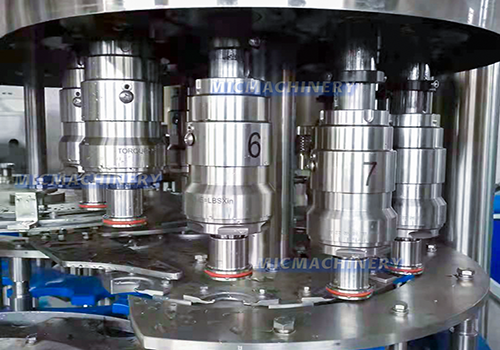

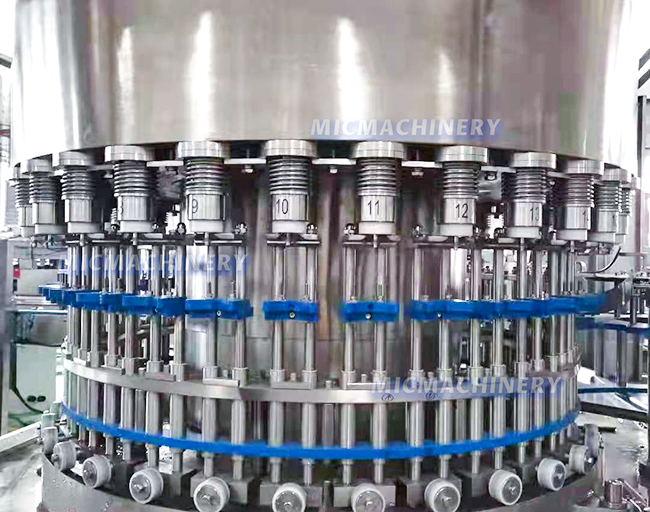

2) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
3) Screw capper adopts French advanced technology which cans screw cap promptly when clamping bottle.

5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on.


About the machine use problem, after the sales,
we will take video for:
1.      how to connect the power
2.      how to operate the machine
3.      how to maintain the machine and how often to do it
4.      how to adjust machine to different bottle or material.

Thank you for the reading this article,
you can also check for:
→ Application ←

Model
MIC 18-18-6
Working section
Washing 18, filling 18, capping 6
Productivity
4000-6000BPH(500ml)
Air pressure
Normal pressure
Filling temperature
20-95degree
Air consume
0.15m3/min
Washing water pressure
0.2MPa
Washing water consume
Less than 1T/hour
Main motor power
2.2kW
Total power
5KW
Overall size
2250*1650*2200mm
Total weight
3500KG

Name Brand
Press-button
Schneider
Magnetic Contactor
Schneider
PLC Mitsubishi
Frequency transformer
Mitsubishi
Air cylinder
AirTAC
Solenoid valve
AirTAC
Relay
Omron
Photoelectric switch
Autonics
Proximity switch
Autonics
