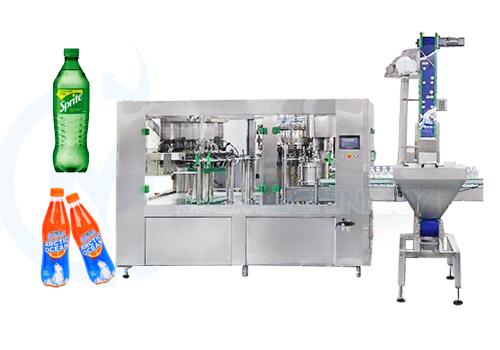

Carbonated Beverage Filling Machine/Carbonated Beverage Production line Description: DCGF series 3-in-1 carbonated beverage filling mono-bloc is used in the PET bottle filling of gas containing beverage, such as Coco-cola, Pepsi-cola, Spirit drink etc. It is combined with bottle washing, filling and capping into one machine.
1. This series of filling machines are used in production of PET bottled carbonated beverage, such as carbonated water, sprite and so on.
2. This series of products are the integrated rinsing, filling and capping machine, suitable for producing various PET bottled carbonated beverage.
3. The main machine adopts advanced PLC control technology.
4. The key electric elements adopt international famous products.
5. We will give you the highest quality and the best service.

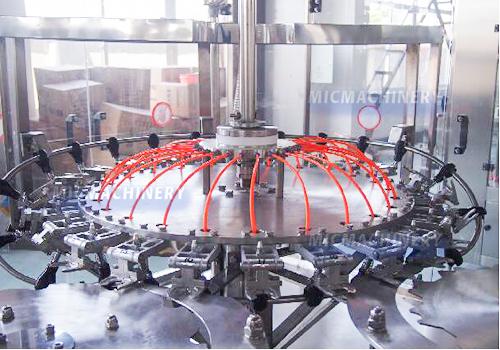

Bottle Washing Part
Into bottle way is air conveyor direct connection with bottle dial.All 304/316 stainless steel rinse heads and rinse disk, water spray style inject design, more save water consumptionand more clean.304/316 Stainless steel Gripper, ensure minimal bottle crash during washing.Washing pump is made of 304/316 stainless steel.The washing part power is transmitted through gears by the transmission system in the machine frame.

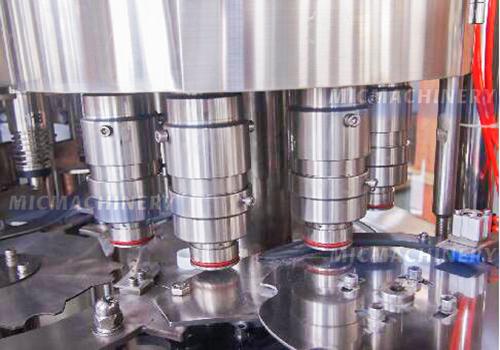

Bottle Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during cappingAll 304/316 stainless steel construction No bottle no capping. Automatic stop when lack of bottle. Capping effect is stable and reliable,Defective rate ≤0.2%
Filling Nozzle |
18 Heads |
Water Rinse Nozzle |
18 Heads |
Capping Head |
6 Heads |
Filling Volume |
0.25-1.5L |
Filling Speed |
2000-3000 Bottles/h (500ML) |
Air Pressure |
0.6Mpa |
Air Consume |
0.15m³/min |
Washing Water Pressure |
0.2Mpa |
Washing Water Consume |
Less Than 1T/h |
Main Motor Power |
2.2KW |
Total Power |
5KW |
Size |
2500mm*1900mm*2300mm |
Total Weight |
3500KG |
Voltage |
220/380V/50HZ (Can Be Customized) |
Control |
PLC+Touch Screen |
Material |
SUS 304 |
Name |
Brand |
Push Botton |
Schneider France |
Electromagnetic Contactor |
Schneider France |
Relays |
Omron Japan |
Frequency Converter |
Mitsubishi or Siemens Japan |
Air Cylinder |
Air TAC Taiwan |
Electromagnetic Valve |
Air TAC Taiwan |
PLC Control System |
Siemens Germany |
Touch Screen |
Siemens Germany |
Photoelectric Switch |
DELIXI China |
Proximity Switch |
DELIXI China |
Reducer |
Zhejiang Duoli China |
Sealing Motor |
Zhejiang Duoli China |
Baromter |
Air TAC Taiwan |
Bearing |
Harbin China |
