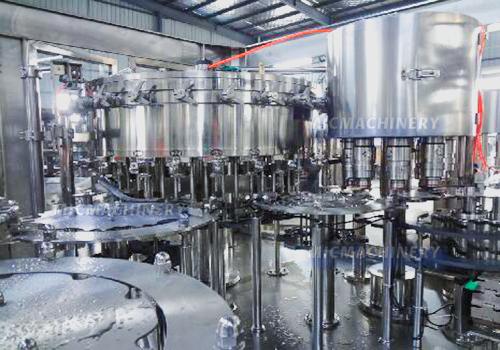

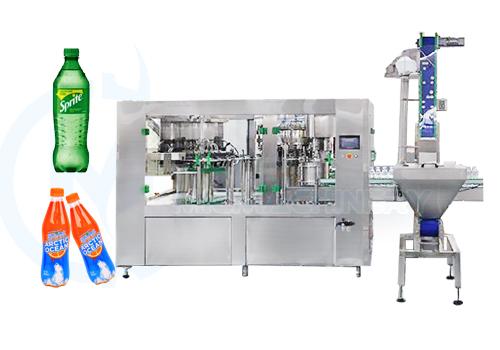

MIC 18-18-6 type PET bottle washing ,filling , capping machinery, it is produced on the basic of learning advanced technology of the similar production in international market and our experience for many years.

It is safe, easy operation and reliable.

It is suitable for filling and capping carbonated beverage such as beer, CSD, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system. It is the preferred equipment for the medium beer and beverage plant.

1. Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
2. Cycling tank design with precision polishing inside;
3.High precision and large flow rate filling valves to meet productive requirement;

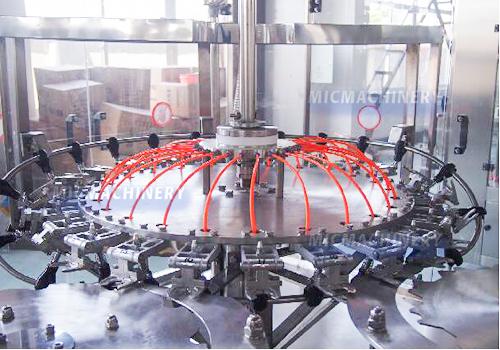

4. Perfect stainless steel bottle gripper of rinsing avoids the secondary contamination by no touch with the bottle screw parts.
5. It is equipped with high speed filling valve of high precision filling.

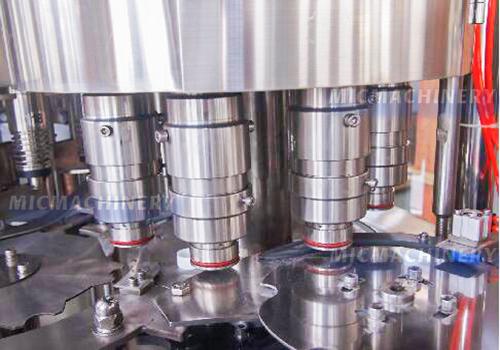

6. The capping head adopts constant magnetic torque device to ensure the high capping quality without damage. High efficient cap settling system, cap feeding system and no bottle no cap system make the whole capping system perfect.
7. It adopts spiral descent fashion for the support plate for bottle bottom at the outlet thumb wheel. It removes the need of adjusting the inlet bottle height for change bottle models.
8. This carbonated beverage filling machine adopts advanced PLC control and touch screen. The key electric elements are from international famous brand.

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Technical parameter
Working section Washing 24, filling 24, capping 8
Productivity 5000BPH-6000BPH(500ml/bottle)
Air pressure 0.4MPa
Air consume 0.2m3/min
Filling pressure 0.2-0.35MPa
Washing water consume Less than 1T/hour
Main motor power 2.2kW
Total power 6KW
Overall size 3200*1900*2300mm
Total weight 5000kg
No. Name Brand
1 Buttons SCHNEIDER
2 Air switch SCHNEIDER
3 Relay OMRON
4 Air cylinder AIRTAC
5 Electromagnetic valve AIRTAC
6 Air gauge AIRTAC
7 Variable-frequency drive MITSUBISHI
8 PLC MITSUBISHI
9 Touch screen MITSUBISHI
10 Optoelectronic switch DELIXI
11 Proximity switch DELIXI
12 Magnetic contactor DELIXI
13 Retarder CHINA
14 Stepping motor CHINA
15 Servo motor CHINA
16 Capping motor CHINA
17 Conveyor motor CHINA
18 Bearing CHINA
19 Optical fiber CHINA
20 Switching mode power supply CHINA
