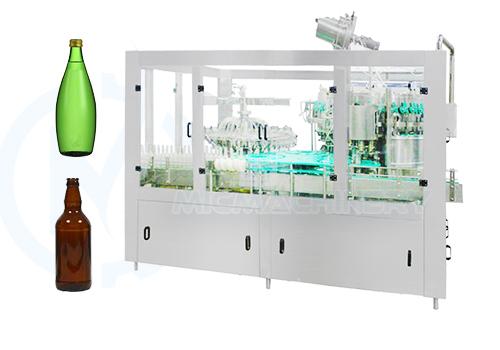

The machine is rotary design, Used for the production of various kinds of beer

This machine use pressure filling, liquid surface positioning. The machine for automatic control.

Through the touch screen to operate the machine.

It is applied to glass bottle and multifunctional which can be used for washing, filling and capping.

The whole process is automatic. It is made of high quality SUS304 stainless steel.

Main components are processed precisely by CNC machine tool.

The machine adopts advanced photo electricity to detect running status.

No bottle no filling, excellent automatically. Because of applying touch screen for operation. It is possible to realize

Main machine conversation where as the status of device running is clear at a glance. Beer filling machine Primary features:

1) Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.

2) Only exchanging "star wheel", "feeding screw" and "arc guide plate" is needed while exchanging model of bottle.

3) The all parts directly contacted with material are all adopted with food stage stainless steel without dead angle, So they can be cleaned easily.

4) Adopting advanced valve to control the inlet flow rate of liquid. It can keep the slight turbulence of liquid level in the solution barrel and ensure the accuracy in filling.

5) Closing feeding valve automatically while no bottle on machine avoid the loss of aqueous feet. Filling automatically is with a high speed and the control of liquid level is accurate.

6) The magnetic-constant-torque device is adopted in capping head to ensure the high capping quality without damage.

7) Adopting efficient cap settling system which carried perfect cap feeding and protection device.

8) It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel. And to adjust the input height is not necessary for exchanging model of bottle.

9) carried the perfect protection system to overload; it can be used to protect facilities and operators efficiently.

10) Because of applying touch screen for operation, it is possible to realize man-machine conversation whereas the status of device running is clear at a glance.

11) The primary electric components such as touch screen\PLC\transducer etc. are all adopted with well known import products.

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

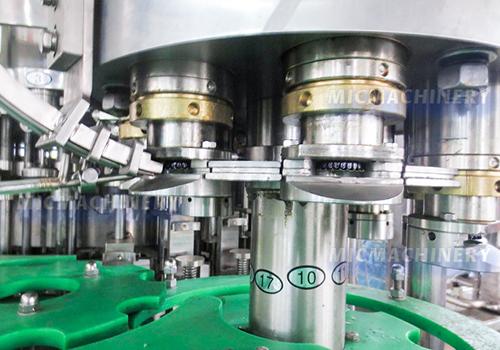

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

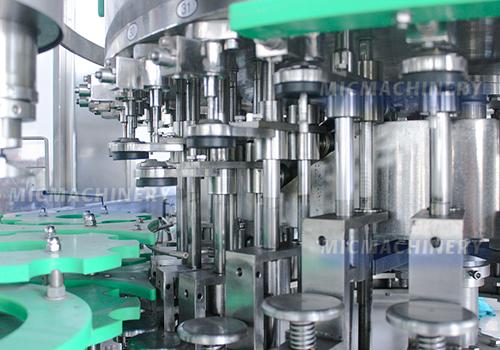

Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.
