MIC 12-12-1 Automatic Soda Bottling Plant It is applicable for glass bottle soda filling . (if need hot filling temperature at 85-90 degree)
Machine working principle:
The series of products are the aseptic filling equipment for soda beverage, designed and developed on the basis of introducing the technology from Germany and combining the features in the production industry of pure beer in China. This machine is of good reliability of mechanical operation, perfect functions in rinsing, filling, capping, disinfecting and sterilizing, realizing filling the sterile beer into the sterile container in a sterile environment
Related machines are: Glass bottle filling machine, glass bottle capper, glass bottling companies, bottle filling machine, bottle equiment, bottle filling, bottle filling capping machine, bottle filler, bottle capper, bottle capping machine, crown bottle capper, bottle capping machine price, Whisky filling capping machine, vodka filling capping machine, liquor filling machine, spirit filling machine.
Versatility is a key advantage of the glass bottle soda filling machine. It accommodates a wide range of glass bottle sizes, shapes, and designs, making it suitable for diverse packaging requirements. The machine's adaptability allows manufacturers to cater to various consumer preferences and market demands, offering flexibility in product offerings. Whether it's tall, slim bottles or traditional stubby designs, the machine effortlessly handles different bottle types, providing a seamless and efficient filling process.
Filling Part

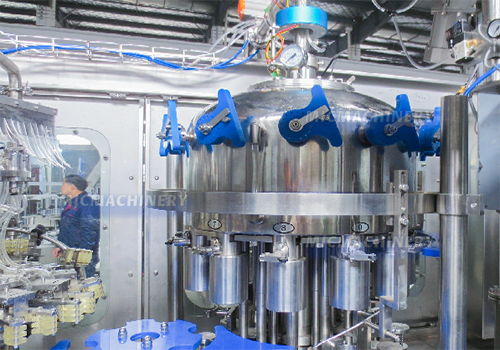

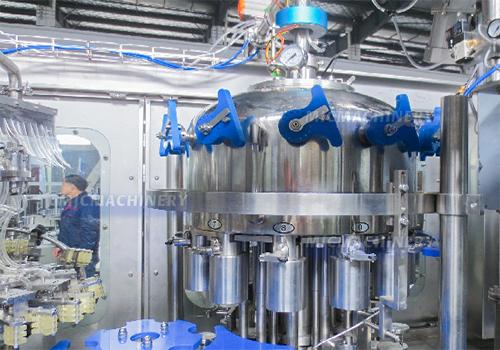

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

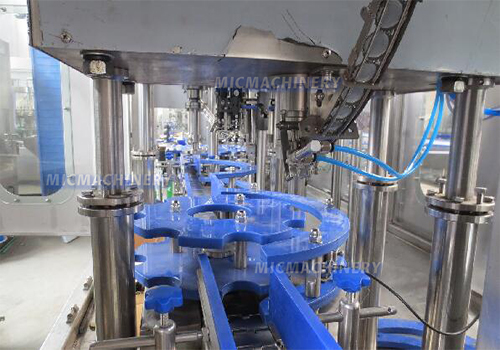

Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Capping Part

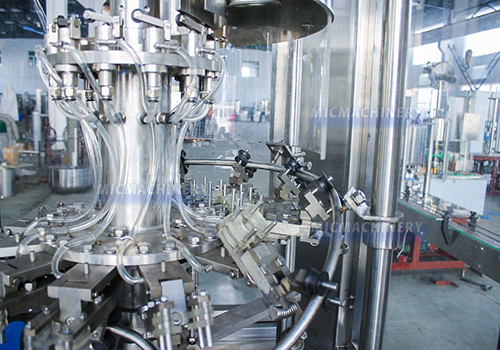

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.
Model | MIC-12-12-1 |
---|---|
Washing heads | 24pcs |
Filling heads | 24pcs |
Capping heads | 6pcs |
Volume | 0.1-1.5L |
Production capacity | 5000-12000bottle/hr base on 500ml |
Filling method | Normal pressure |
Power | 3.5kw 380V/50HZ(According to customer) |
Air pressure | 0.7Mpa |
Gas consumption | 0.8m³/min |
Water consumption for bottle washing | 0.5-1T/H |
Washing time | 1.5s~2s |
Wash bottle water pressure | 0.2~0.25 Mpa |
Weight | 4500kg |
Dimension | 3500×1800×2500mm |
Electrical configuration | |
---|---|
Touch screen | DELTA |
Frequency converter | MITSUBISHI |
PLC | MITSUBISHI |
Contactor, breaker | DELIXI |
Proximity switch | DELIXI |
Photoelectric switch | DELIXI |
Bearing | Harbin |
Relay | OMRON |
Barometer | AirTAC |
Air cylinder | AirTAC |
Solenoid valve | AirTAC |
